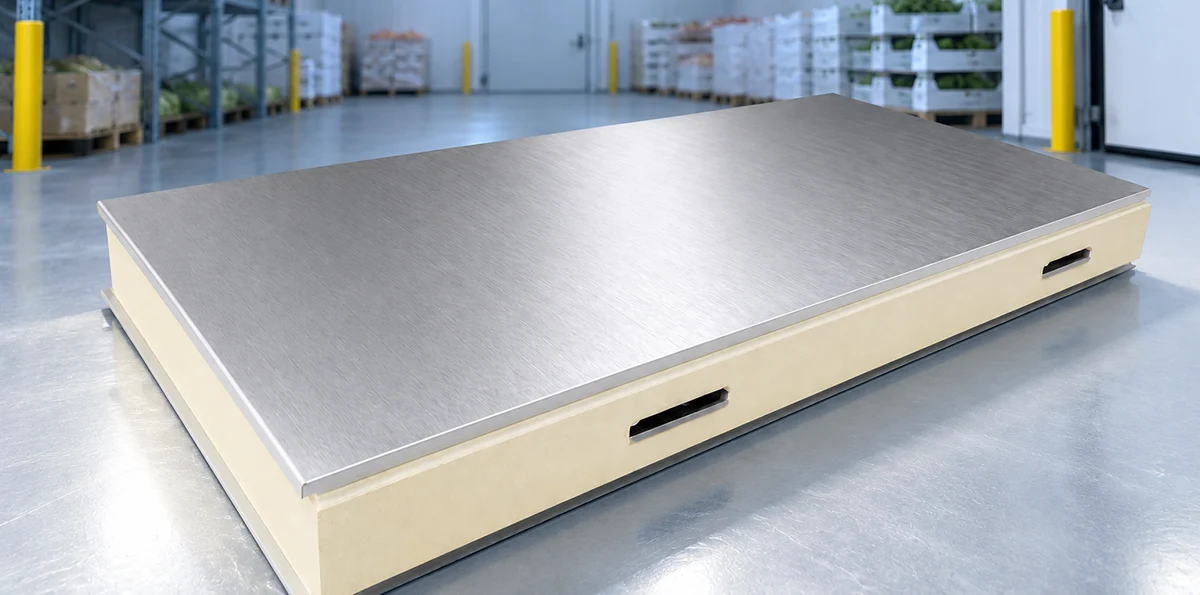

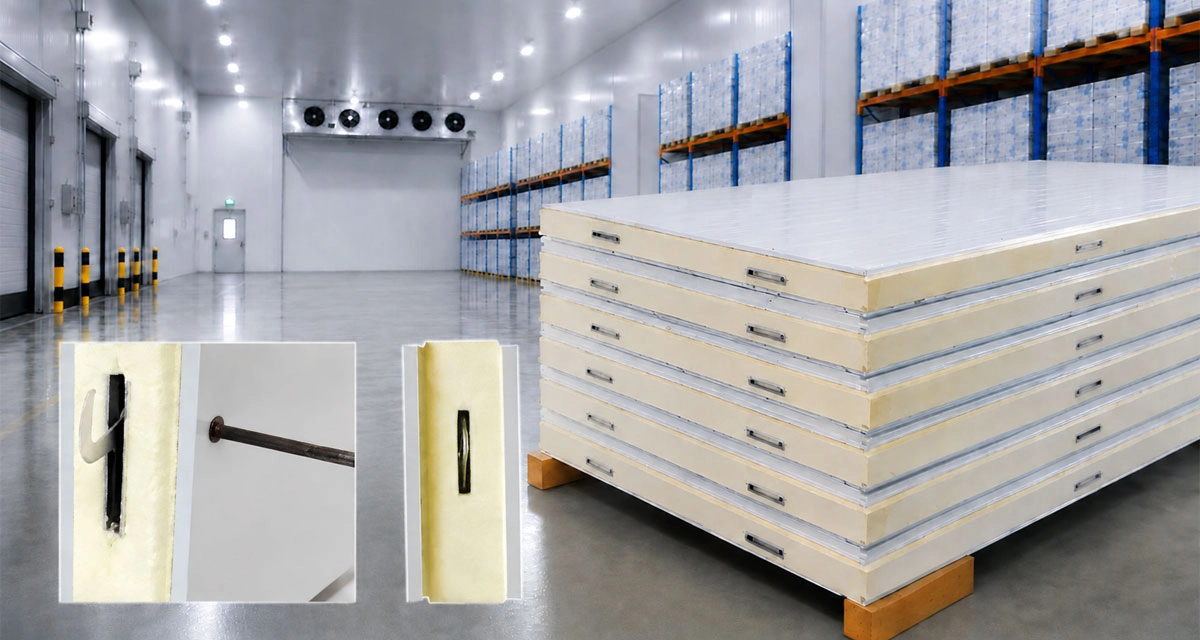

PU Sandwich Panel
- Made with PU foam core and metal cladding layers.
- They provide excellent thermal insulation, structural strength, and easy cam-lock connection for cold storage projects.
Why Choose Our PU Panels?
Superior Thermal Insulation
Thermal conductivity ≤0.022 W/m·K
High Strength & Durability
Compressive strength ≥0.2 MPa
Fire-Safe Performance
Available in B1 or B2 fire rating
Moisture & Corrosion Resistance
Closed-cell structure and protective metal layers
Easy Installation
Precision-engineered cam-lock connection

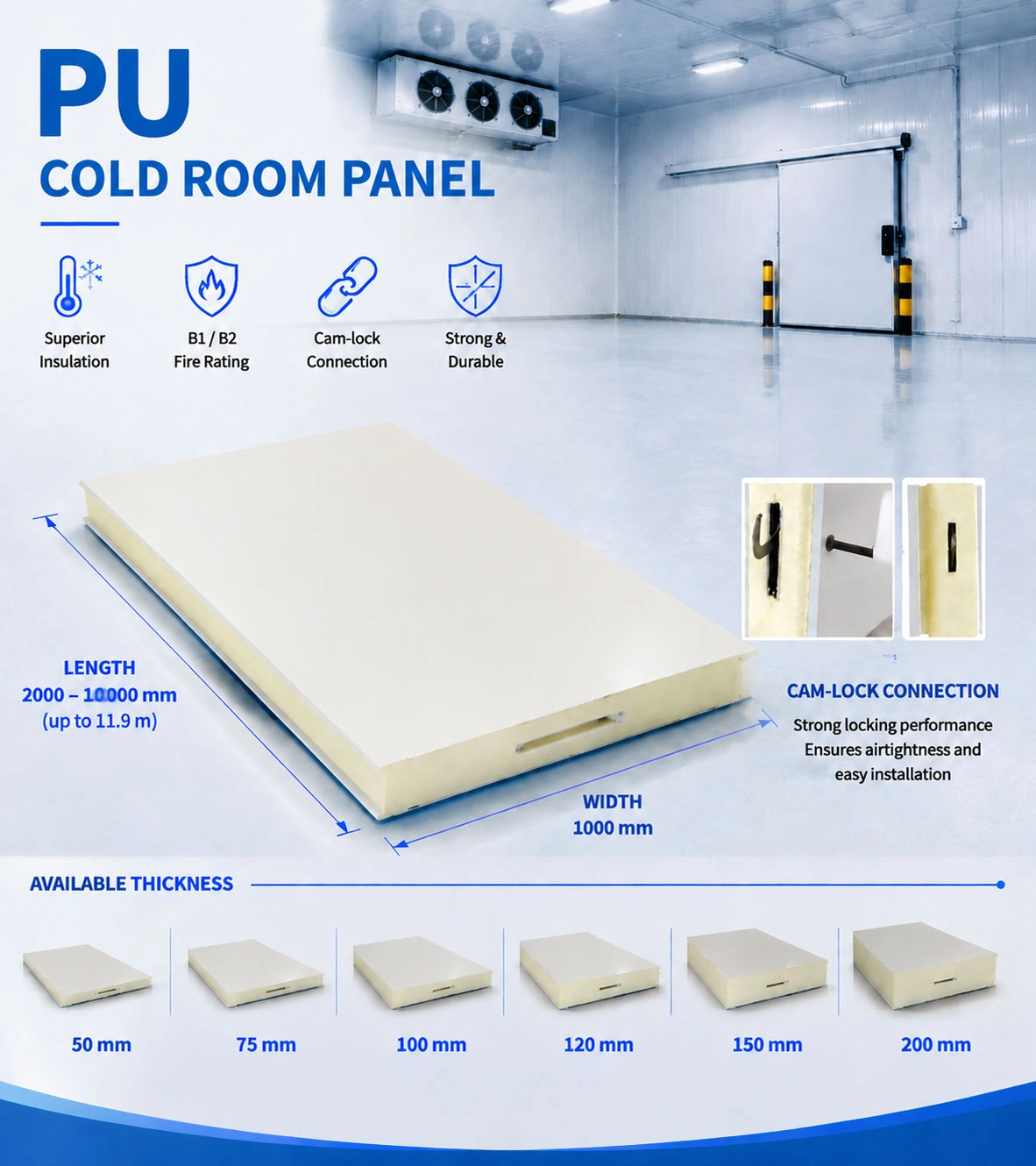

Specifications
| Item | Specification |
| Core material | PU (Polyurethane) |
| Width | 1000mm |
| Length | 2000 - 10000mm, up to 11.9m (for container loading) |
| Thickness | 50/75/100/120/150/200mm |
| Connection mechanisms | Cam-lock |
| Thermal conductivity | ≤0.022 W/m.k |
| Density | 40±2 kg/m³ |
| Coefficient rate | ≤0.3 kg/m³ |
| Compressive strength | ≥0.2 Mpa |
| Bending strength | ≥0.25 Mpa |
| Flammability rating level | B1/B2 |
| Self-extinguishing time when removed from the fire | ≤7s |
Rib Profiles

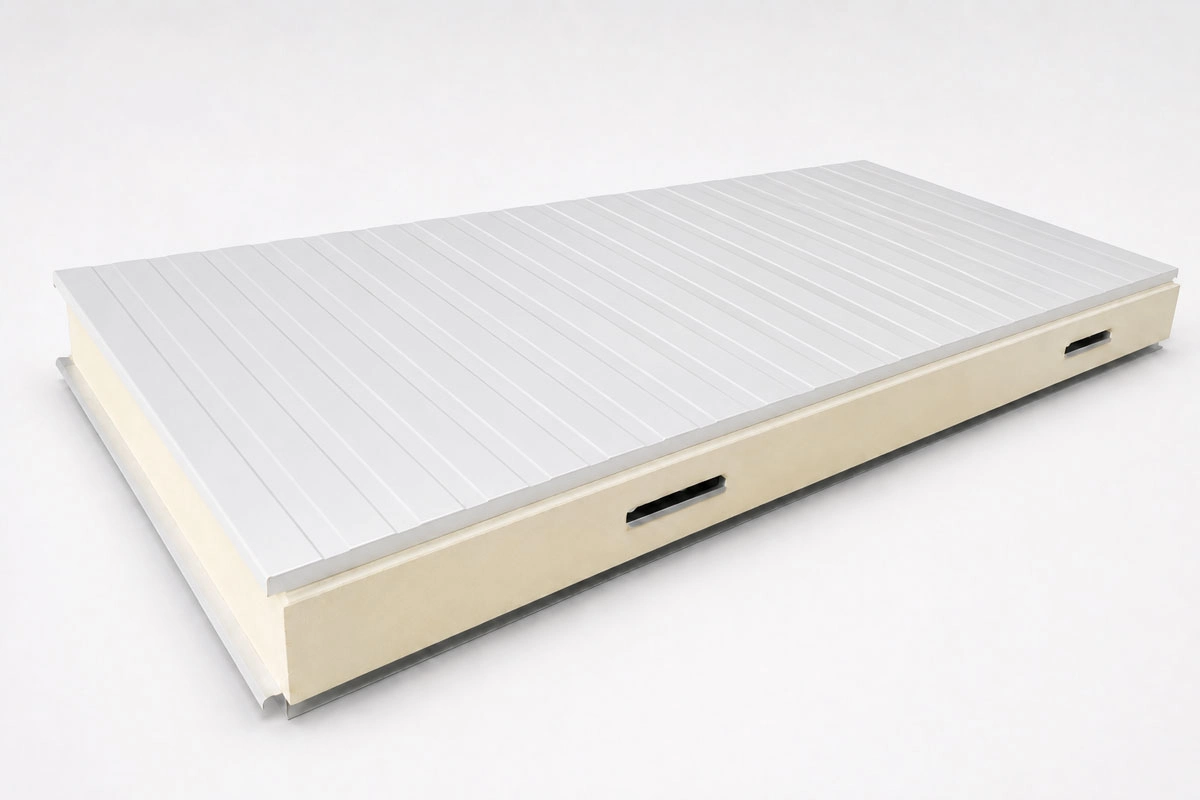

Wide Ribs
Wider reinforcing ribs for improved structural strength and and modern appearance.

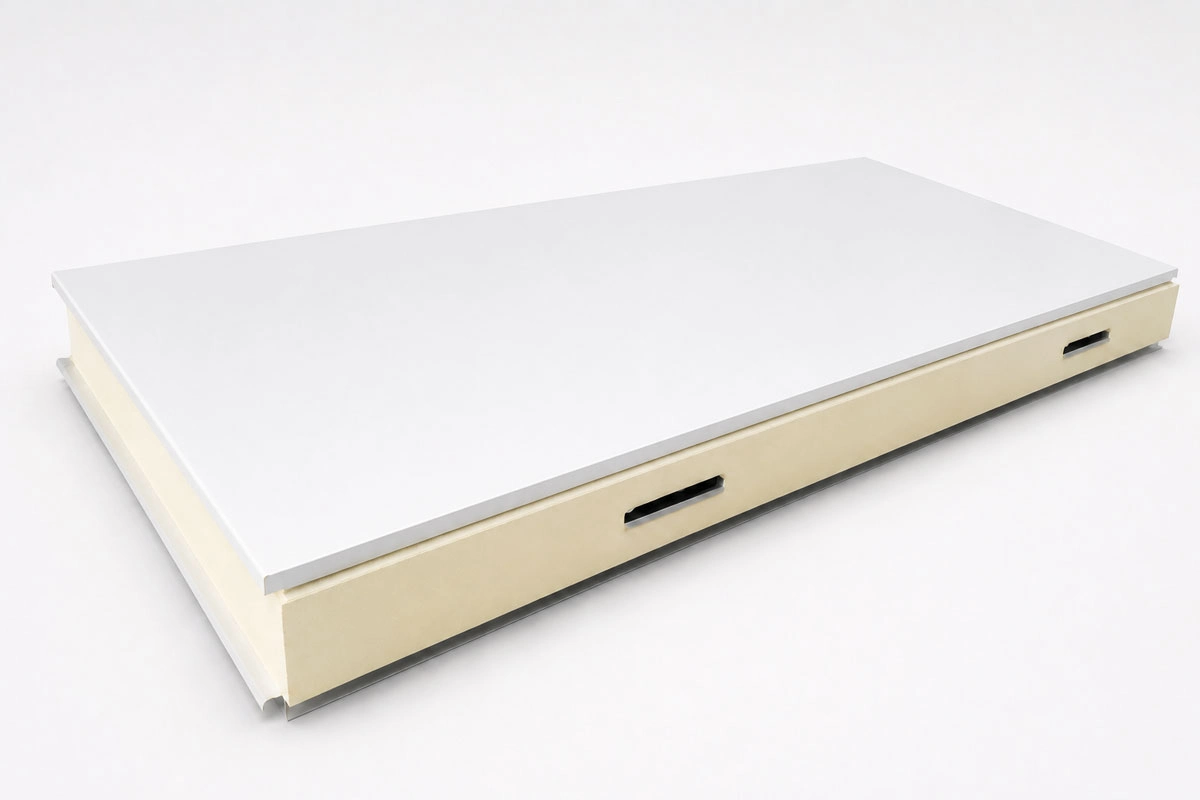

Flat
Smooth, flat surface with a clean, minimalist appearance, easy to clean and maintain.
Cladding Layer Options

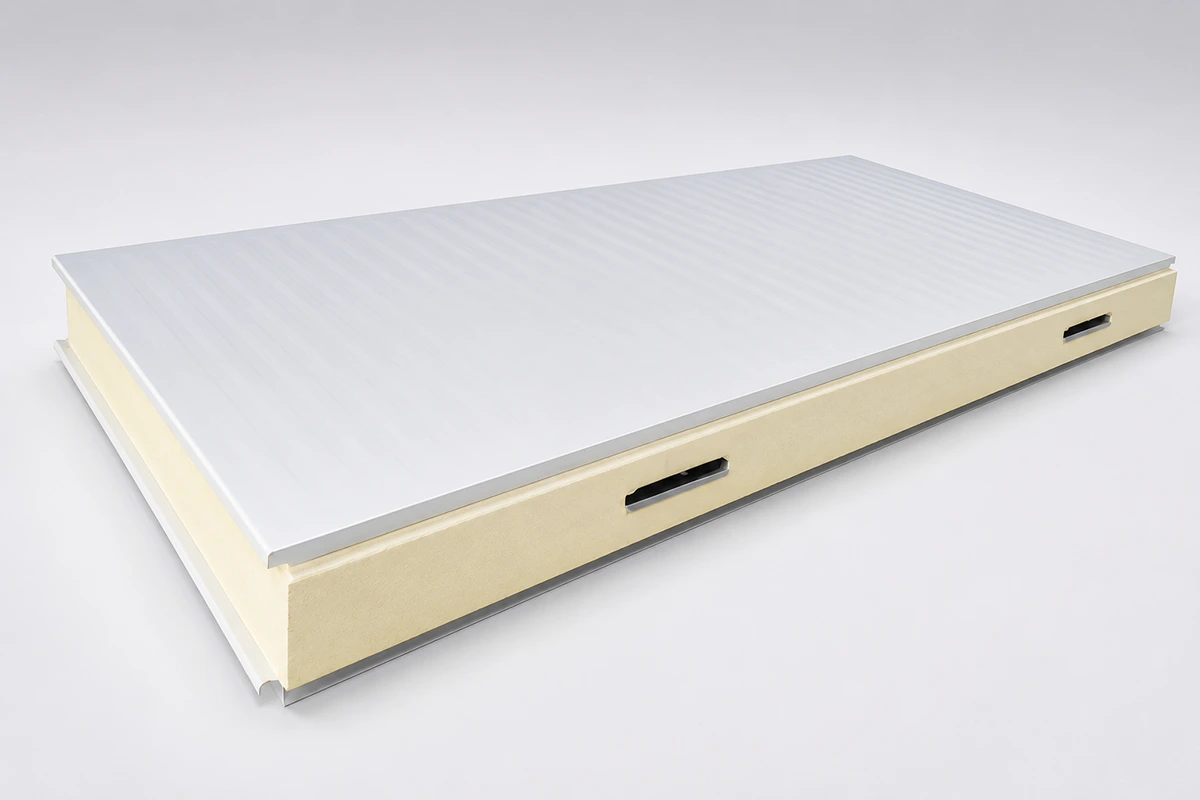

Double-sided Color Steel
- 0.326/0.426/0.476/0.5 mm thickness
- A cost-effective and versatile cladding option that offers excellent corrosion resistance, good mechanical strength, and an attractive finish.

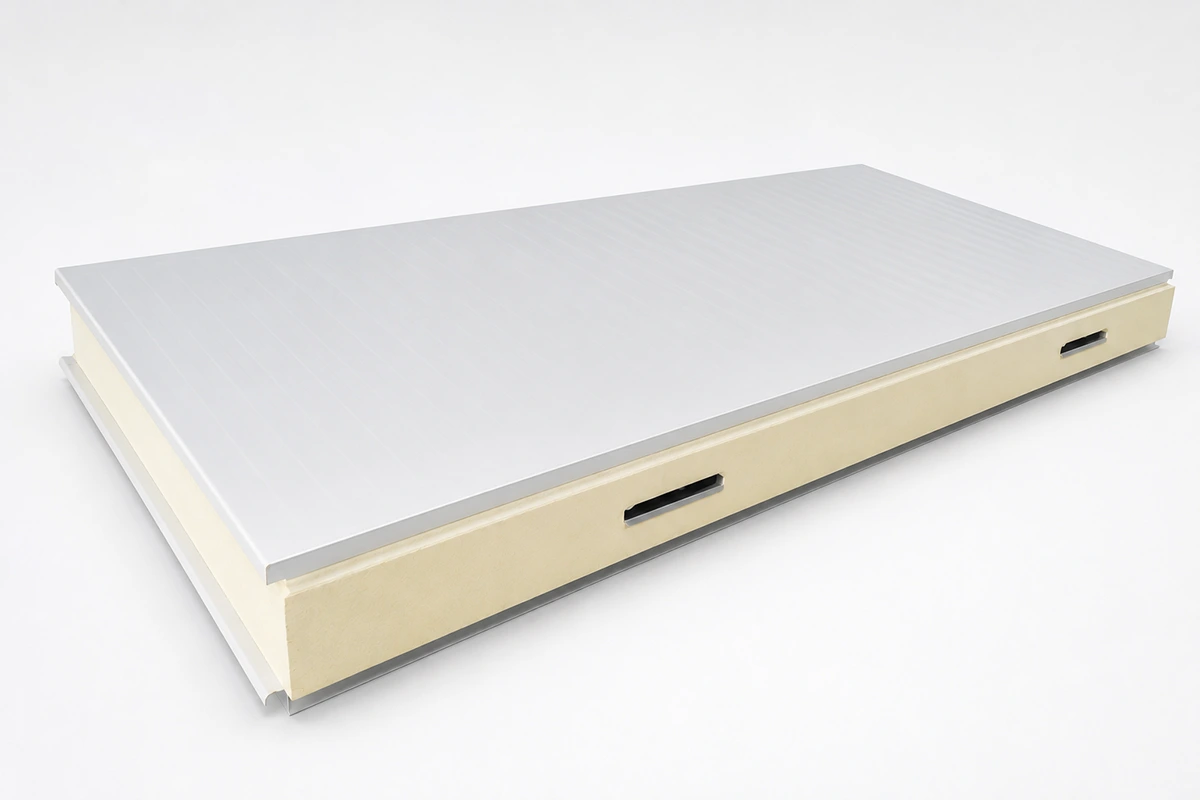

Double-sided Baosteel
- 0.4/0.45/0.5/0.55/0.6 mm thickness
- Manufactured with premium Baosteel, provides enhanced durability, superior coating performance, and long-term corrosion resistance.

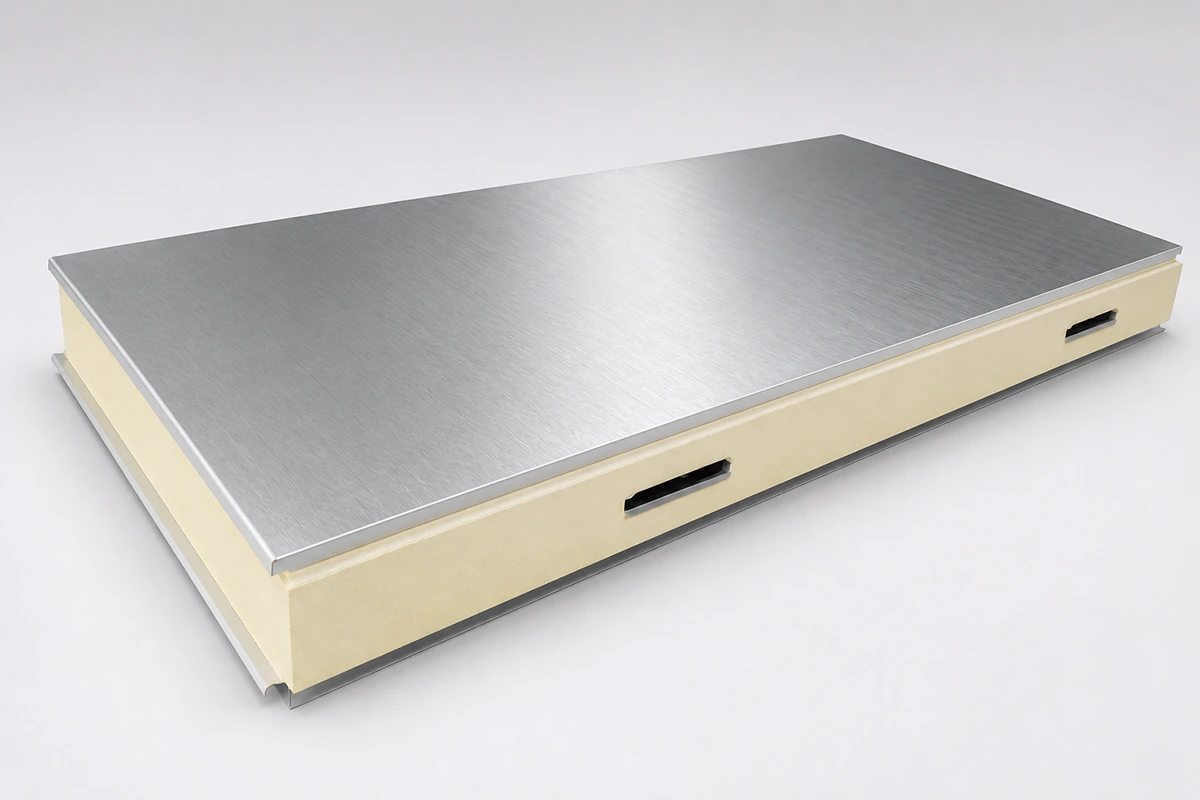

Double-sided Stainless Steel
- 0.4/0.5/0.8 mm thickness
- Designed for hygienic and corrosive environments, delivers exceptional corrosion resistance, easy cleaning, and long service life.

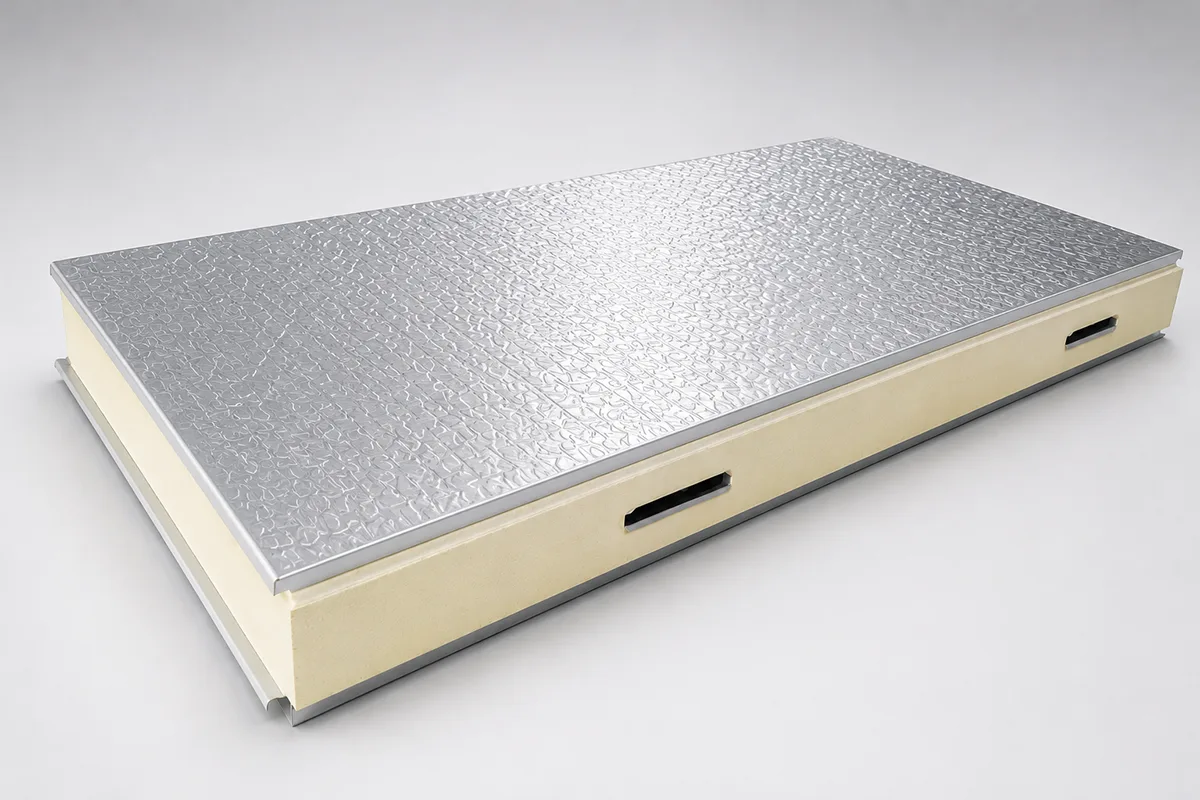

Double-sided Embossed Aluminum
- 2/2.5/3/4/5/6mm thickness
- Provide excellent corrosion resistance, improved scratch resistance, and an attractive textured appearance while reducing overall panel weight.

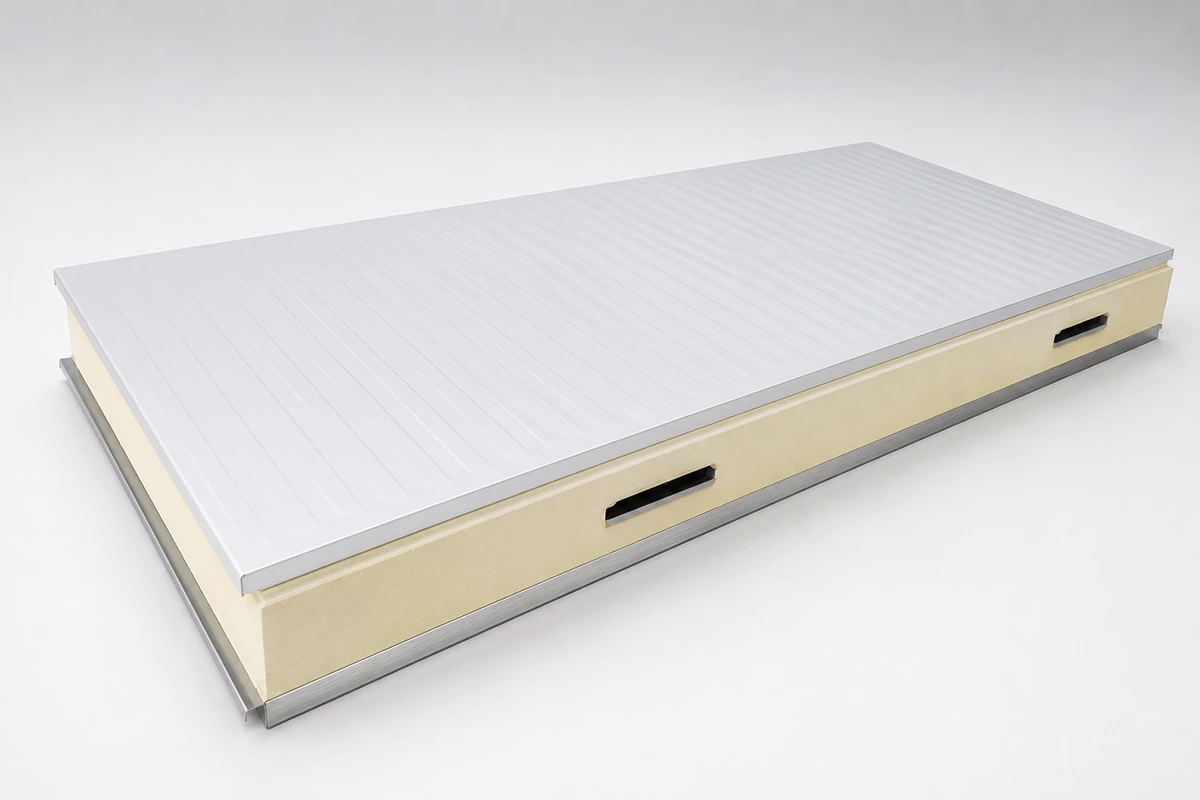

Color Steel + Stainless Steel
- 0.4/0.5mm thickness
- Combines the economy of color steel with the hygienic, corrosion-resistant properties of stainless steel, offering an ideal balance of performance and cost.
Applications
PU panels are known for their excellent cost-effectiveness and thermal insulation performance, making them the preferred choice for most small and cost-sensitive cold storage projects.

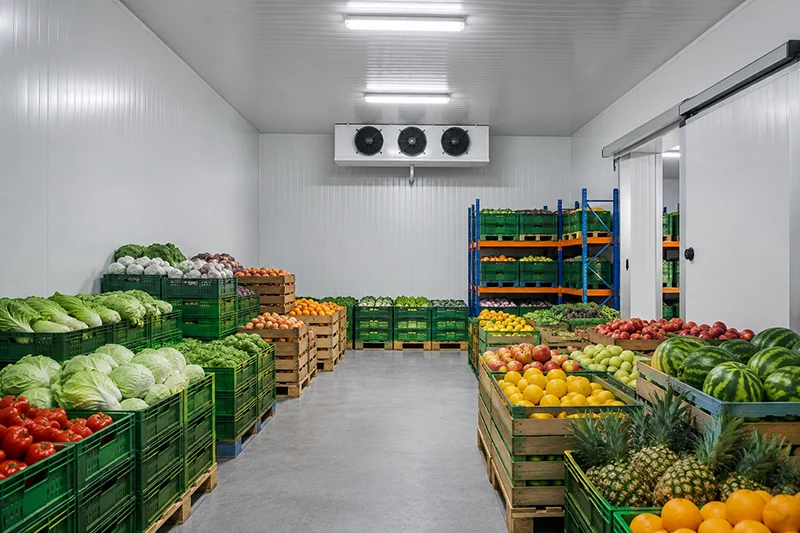

Fruit & Vegetable Cold Storage
Fresh produce requires stable temperatures rather than high fire ratings, making PU panels an economical solution.

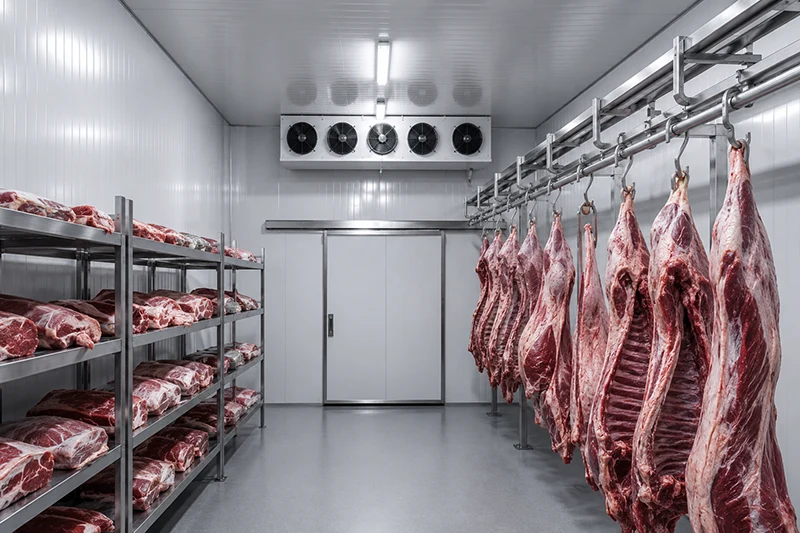

Meat Cold Storage
For standard meat cold storage projects, PU panels provide the ideal balance between energy efficiency, durability, and investment value.

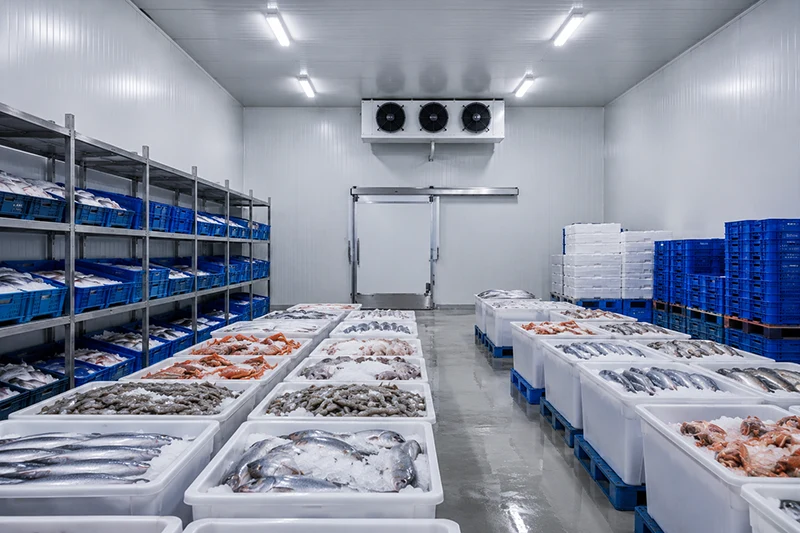

Seafood Cold Storage
Since most seafood cold rooms prioritize thermal efficiency over enhanced fire performance, PU panels offer a more cost-effective solution than PIR.

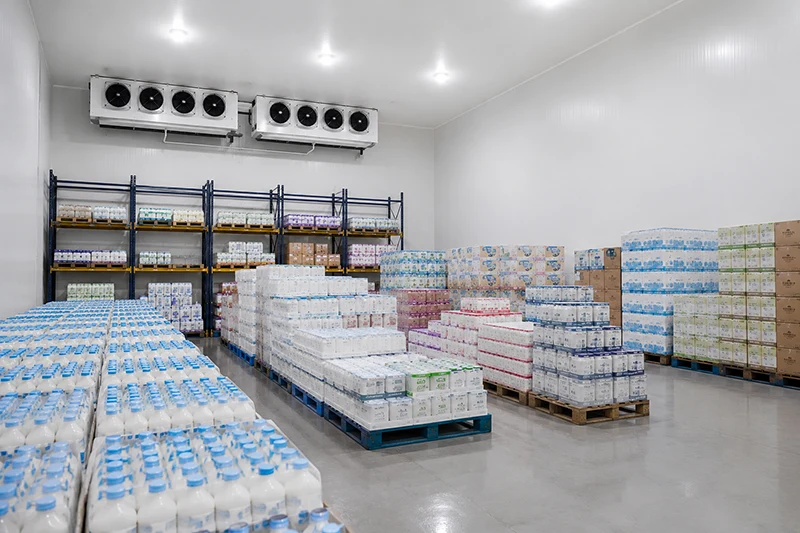

Dairy Cold Storage
PU panels offer the performance required for preserving milk, cheese, yogurt, and other dairy products at a more economical price.
